플로팅도크상가수리

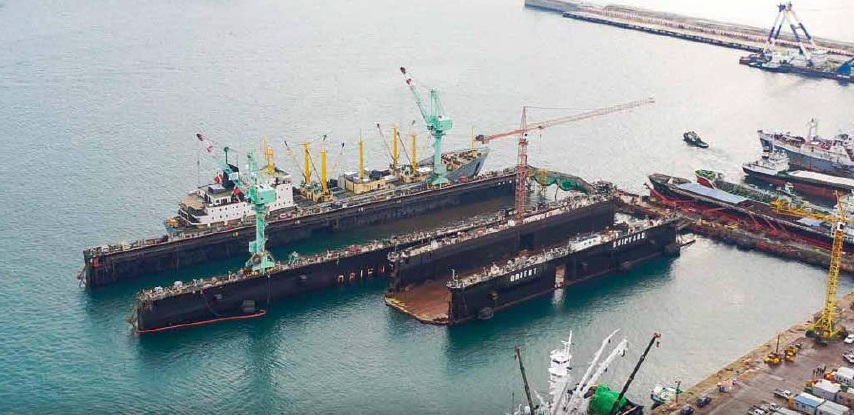

오리엔트조선은 25,000 TLC(TONNES LIFTING CAPACITY)의 길이 210미터와 5,000 TLC(TONNES LIFTING CAPACITY)의 길이 135미터인 FLOATING DOCK를 보유하여 여러 사이즈의 선박을 상가하여 수리가 가능합니다.

FLOATING DOCK의 상가 시스템은 선박의 입출거 시간을 단축시키고, 오랜 기간 다양한 실적에 따라 축적된 수리공사 KNOW-HOW로 최상의 수리서비스를 제공하여 고객이 원하는 기한에 공사가 완료될 수 있도록 노력하고 있습니다.

YARD

25,000 TLC (210M) FLOATING DOCK

Main Particular

Length overall 210.0m
Breadth of outside tower wall(upper) 48.20m
Breadth of inside tower sall 39.20m
Depth of pontoon at centerline 6.25m
Height of tower deck 1.75m
Maximum submerging draft 15.60m
Lightweight (Equivalent draft of lightweight:1.34m) 12,871 tonnes
Maximum Lifting capacity abt.25,000 tonnes

Main Equipments

Ballast pump 3,000 m3/hr x 15m, 4 Sets
Fire & G/S Pump 60 m3/hr x 50m, 2 Sets
Bilge Pmup 48 m3/hr x 30m, 6 Sets
Mooring Winch 30/15 Tonnes x 10/20 m/Min, 4 Sets
Deck Crane 15t x (10~15m) / 8t x (15~28m), 2 Sets
Diesel Generator 750 Kw x 1,800 RPM, 2 Sets


5,000 TLC (135M) FLOATING DOCK

Main Particular

Length overall 135.0m
Breadth of outside tower wall(upper) 32.0m
Breadth of inside tower wall 26.3m
Depth of pontoon at centerline 4.6m
Height of tower deck 16.4m
Maximum submerging draft 12.8m
Lightweight (Equivalent draft of lightweight:1.34m) 3.950 tonnes
Maximum Lifting capacity abt.5,000 tonnes

Main Equipments

Ballast pump 500 m3 / hr × 10 m, 6 Sets
Fire & G/S Pump 50 m3 / hr × 15 m, 6 Sets
Bilge Pmup 100 m3 / hr × 15 m, 3 Sets
Mooring Winch 15 Tonnes, 2 Sets, 8 Tonnes 6 Set
Deck Crane 12Ton tower crane / boom 70 m / Master 32.436 m
Diesel Generator AC 450V / 752Kw x 2set
